New sorting machine from Pellenc ST

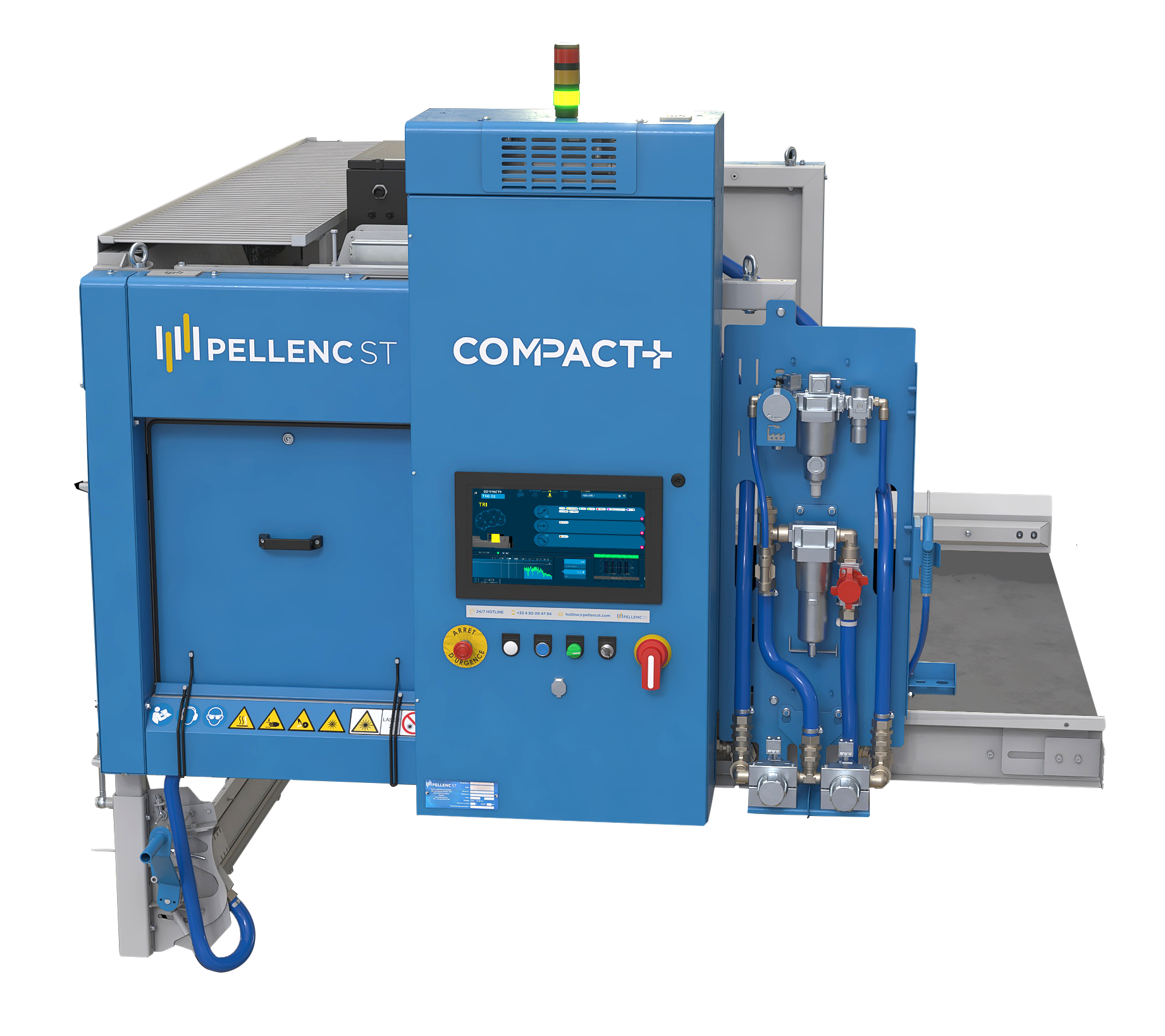

The COMPACT+ is the latest generation COMPACT. The machines are inherently compact and share the latest advanced sorting technology with the Mistral + CONNECT, giving the same high levels of performance.
Photo: Pellenc ST

It is available in two configurations (conveyor or gantry). The COMPACT+ is particularly suited to installations where space and access are limited. With the option of offsetting the control cabinet and the ability to modular assemble the machines on site, the COMPACT+ is the ideal solution for a quick and easy retrofit. The machines have been designed to interface easily with all types of high-speed conveyors supplied by different integrators, whether for a refurbishment project or a new sorting centre, and are also compatible with belt speeds up to 4.5m/s.

As well as being easy to integrate, the COMPACT+ is equipped with the latest innovations developed by Pellenc ST. These offer improved performance, using the new “FLOW” detection system, which combines a new spectrometer with an extended NIR/VIS spectrum and focused illumination. This combination enables the recovery of waste to high levels of purity. In particular, the “FLOW Detection” system improves the separation of paper from cardboard, different grades of PET or wood, for example. Thanks to the CNS “Central Nervous System” software platform, operators will be able to integrate future technologies and Pellenc ST scanners such as the IIoT,watermarking, and artificial intelligence in the form of upgrades. The COMPACT+ also has all the options already familiar from the Mistral+ CONNECT range, such as Dual Vision, Metal Detection, and Profile Detection for the detection of black and inert materials.

During the development phase, Pellenc ST paid particular attention to the simplification of the work of operators in order to optimise maintenance costs. Firstly, in terms of ergonomics, the control cabinet is fitted with a large screen to improve the man-machine interface. Pivoting reflectors are also provided to facilitate the ease and safety of maintenance operations. The COMPACT+ stands out with its low energy consumption. Maintenance costs have been minimised, particularly in terms of air consumption and wear parts.

Last but not least, Pellenc ST offers its customers local and personalised support through a 24/7 turnkey service offer that includes wear parts and the Smart&Share application. Smart&Share is a valuable performance support tool that continuously analyses the operation of optical sorters and helps optimise their operation with intelligent alerts and customised reports for increased availability and better sorting quality.
