Application diversity for cone and impact crushers

The mobile cone crusher Mobicone MCO 90(i) Evo 2 and the mobile impact crusher Mobirex MR 110(i) Evo 2 can now be fitted with a double-deck post screening unit as an option.

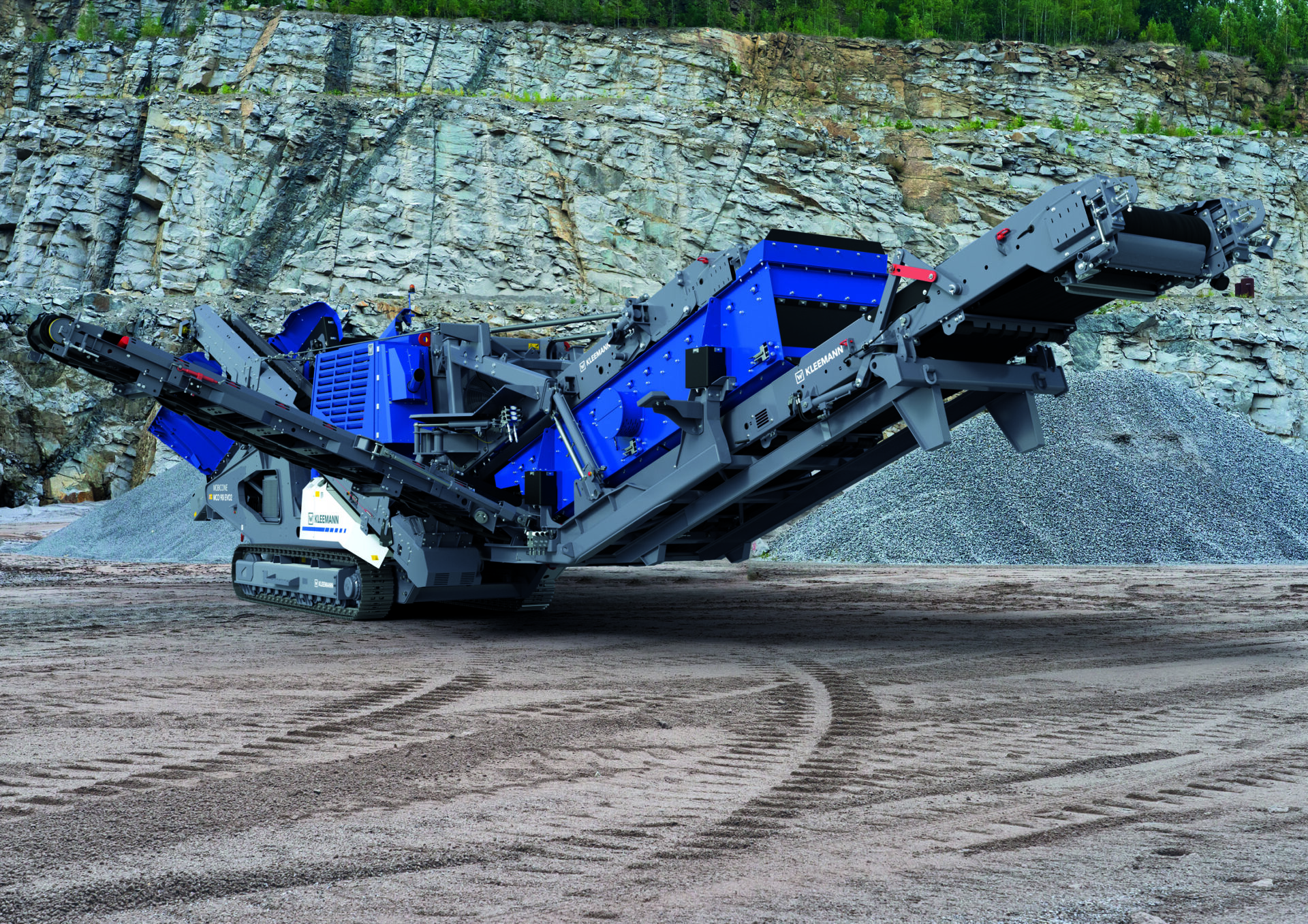

Both cone and impact crushers can now be equipped with an optional double-deck post screening unit. (Source: Wirtgen Group)

Cone crushers are mainly used in hard stone, impact crushers in soft to medium-hard stone and in recycling. A very high product quality is expected from both plant types. Thanks to the new optional double-deck post screening unit, it is now also possible, with a single machine – without the use of an additional screening plant – to produce two classified final grain sizes.

High application diversity and flexibility

The large screening surface makes effective screening possible especially for grain sizes below 7/8”. The discharge height of the fine grain conveyor is designed for a maximum stockpile volume. Oversize grain can be processed in a closed material circuit via a return conveyor. As an option, the conveyor can be swivelled hydraulically by up to 100°, which also makes side discharge possible. A kidney-shaped stockpile can thus be created manually.

If an application is only to produce one classified final grain size, the post screening unit can simply be used as a single-deck version.

Wind sifters for effective cleaning

As the Mobirex MR 110(i) Evo 2 is frequently used in recycling applications, wind sifters are used here as an option. They provide better material quality because lightweight material (e.g. wood and plastic) contamination is removed from the material. The air flow can be controlled precisely depending on the material, reducing manual sorting work. The wind sifter can only be used in conjunction with the post screening unit. With the double-deck post screening unit, a second wind sifter can be used as an option for cleaning the medium grain.
